Model
|

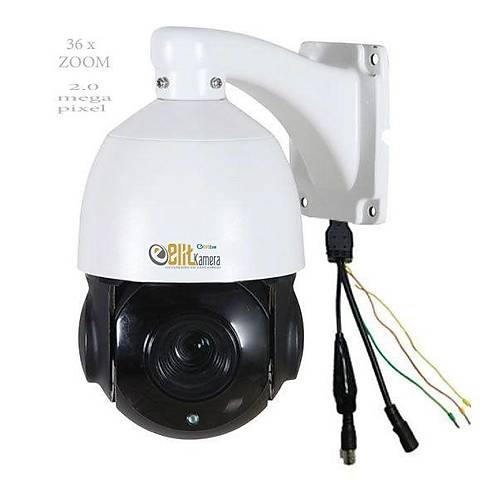

Elit 7040 Ahd Mini Speeddome Kamera 36x Zoom
|
|
Sensor
|
1/3'', 2 megapixel, progressive scan, CMOS
|
|
Lens
|
4.5 ~ 135 mm (30x optical zoom), AF automatic focusing and motorized zoom lens
|
|
Angle of View (H)
|
62.9° (wide) ~ 2.3° (tele)
|
|
Iris
|
Auto/Manual; F1.6 ~ F4.4
|
|
Shutter
|
Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
|
|
Minimum Illumination
|
Colour: 0.03 lux (F1.6, AGC ON)
0 lux with IR
|
|
S/N
|
>52dB
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Defog
|
Digital Defog
|
|
WDR
|
Digital WDR
|
|
Video
|
|
Max. Resolution
|
1920 × 1080
|
|
Video Compression
|
Ultra 265,H.265, H.264, MJPEG
|
|
Frame Rate
|
Main Stream:2MP (1920×1080):Max. 30 fps;
Sub Stream:2MP (1920×1080):Max. 30 fps;
Third Stream: D1 (720×576): Max. 30 fps
|
|
Video Streaming
|
Triple
|
|
HLC
|
Destekler
|
|
BLC
|
Destekler
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
EIS
|
Destekler
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
Behavior Detection
|
Intrusion, cross line, motion detection
|
|
Exception Detection
|
Audio detection
|
|
Intelligent Identification
|
Face detection
|
|
Statistical Analysis
|
People counting
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 128 GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G), API
|
|
Pan & Tilt
|
|
Pan Range
|
360° (endless)
|
|
Pan Speed
|
0.1°/s ~ 240°/s
|
|
Preset speed: 300°/s
|
|
Tilt Range
|
–15° ~ +90° (auto reverse)
|
|
Tilt Speed
|
0.1° ~ 160°/s
|
|
Preset speed: 240°/s
|
|
Number of Preset
|
1024
|
|
Patrol
|
Up to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16.
|
|
Pattern
|
Up to 16 patterns, with the total recording time not less 15 minutes per pattern
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
|
1 Input: impedance 35 k?; amplitude 2 V [p-p]
|
|
|
1 Output: impedance 600 ?; amplitude 2 V [p-p]
|
|
Alarm I/O
|
1/ 1
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
General
|
|
Power
|
24 V AC±25%, 24 V DC±25%
|
|
|
Power consumption: 9 ~ 42W
|
|
Dimensions (Ø x H)
|
Ø227 x 359.4 mm (Ø8.9'' x 14.2'')
|
|
Weight
|
5.28 kg (11.6 lb)
|
|
Working Environment
|
–40°C ~ +65°C (-40°F ~ 149°F), Humidity ? 90% RH(non-condensing)
|
|
Ingress Protection
|
IP66
|
